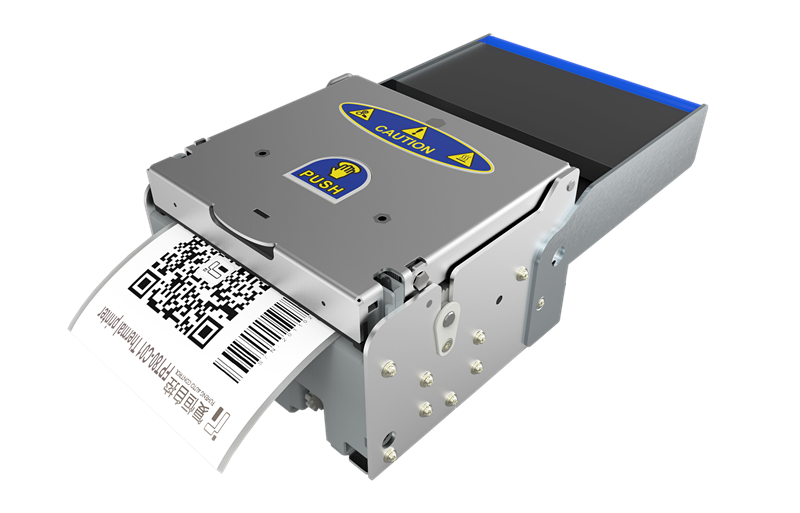

FPT80-C01 Kiosk Thermal Printer

FPT80-C01 supports printing on thick paper, thin paper, stickers and other materials, and is used for label printing, airport boarding pass printing, luggage label printing, and attraction ticket printing. At the same time, it supports RFID label printing. Its multiple functions and integrated design make FPT80-C01 the best choice for high-end self-service terminal components and desktop devices. The main application areas of this product are: airports, transportation, tourism, clothing, logistics and traceability label industries, etc.

Compact size for easy integration and installation

Support auto feed mode

Support page mode printing

Support GDI mode printing

Support RFID tag reading and writing

Support roll paper, folded paper printing

Support upper and lower black mark, via hole, label bottom paper recognition

Support USB/RS232 two communication modes

Support automatic paper cutting function

Voltage range: 24V±10%

With a paper feeder function to prevent malicious pulling by people

With paper end detection function, early warning of the remaining amount of paper

Item Description
Printing Thermal   Line Printing
Width 80mm(640   dots/line)
Paper   Width 79.5±0.5mm
Paper   Thickness 50~200g/m2
Resolution 203dpi
Number   of dots 8dots/mm
Paper   Feeding Method Automatic   suction paper, 180°
Printing   Speed 150mm/s
Character  FONT A:12×24(1. 5×3mm)Dot matrix character
 FONT B:9×17(1.125×2.125mm)Dot matrix character
Barcode l         1D: EAN8、EAN13、CODE39、CODE128
l         2D: QR、PDF417
Interface RS-232/USB
Buffer 16KB
Command ESC/POS
Sensor Paper   end、Paper near end、Black mark sensor、Head up、Head temperature, Paper delivery   detection, paper picking up detection
Paper   Cut Automatic,   Whole cut or partial cut
Power   Supply Voltage:24VDC±10%
Current: Average   2.5A, peak value: 7A max
Energy   Consumption 60W
Operating   environment Temperature:-10~70℃
Humidity:   20 ~85 % RH (No condensation)
Storage   environment Temperature:-30~70℃(No   condensation))
Humidity:   5 ~95 % RH (excluding the thermal paper)
Dimension 153.60mm(L)   ×111.00mm(W) ×68.00mm(H)
Reliability Head life:100KM
    Cutter life:100 million cuts

Fuheng is dedicated ourselves in providing the solution for the aviation industry simplify all printing and control processes in airports, especially when it comes to printing boarding passesluggage labels and plane tickets.
